12V 40 Amp PWM Smart Digital Solar Charge Controller For Lead Acid And Lithium Battery

Brand Name : Melin Sunergy

Model Number : MT515

Certification : CE-LVD ,CE-EMC

Place of Origin : China

MOQ : 100

Price : USD28~USD36 per piece

Payment Terms : Western Union, T/T, L/C

Supply Ability : 5000pcs per month

Delivery Time : 25 working days

Packaging Details : Color Box

Charging Technology : 5 Stage Charging

Batteries : AGM/GEL/WET/Calcium /LTO/LiFePO4

Type : PWM Controller

Application : Portable Solar Panel for charging Marine ,Boat, Caravan Battery

Feature : maintain battery with longer life

Color : Black

Size : 155X125X38mm

Weight : 460g

Warranty : 24 months

Contact Now

40A 12V Digital Smart PWM Solar Charge Controller For Both Lead Acid And Lithium Battery





【Introduction】



MT515-40A pwm solar charge controller is a Flush mount solar charge controller with digital LCD display . It can protect the battery

from over charging and block the reverse charging from battery to solar panel at night time . With 5 stage charging technology

, can help to maintain the battery with longer life . Suits for AGM , Gel , WET , Calcium Lead acid batteries , LTO & LiFePO4 lithium battery on Marine ,Boat and Caravan etc..



【Features】

12V 40 Amp PWM Smart Digital Solar Charge Controller For Lead Acid And Lithium Battery
12V 40 Amp PWM Smart Digital Solar Charge Controller For Lead Acid And Lithium Battery

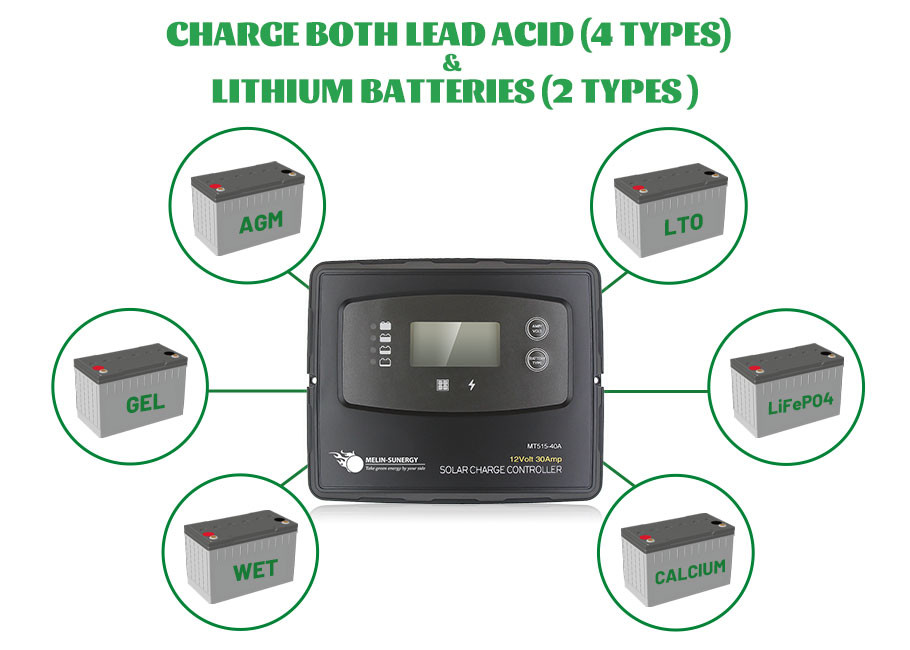

【Suits for lead acid batteries AGM /GEL/WET and Lithium battery LiFePO4】

12V 40 Amp PWM Smart Digital Solar Charge Controller For Lead Acid And Lithium Battery

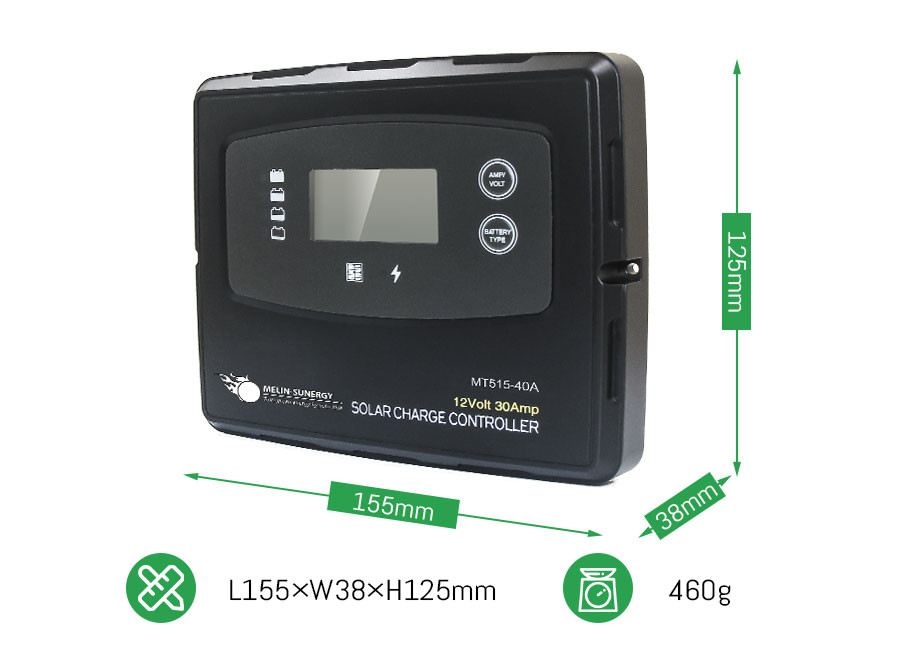

【Compact small size and Weight 460g only】

12V 40 Amp PWM Smart Digital Solar Charge Controller For Lead Acid And Lithium Battery

【Specification 】

Item No. MT515-40A
Rated Current 40A
Max. Solar Power Input 760W
Norminal Solar Input Voltage 15~22V DC
Max. Solar Input Voltage 25V DC
Lowest Operation Voltage 9V DC
Charging Stage 5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float)
Battery Type 6 Types of Battery (AGM, GEL, WET ,Calciium,LTO & LiFePO4)
Min. Battery voltage  3V DC
Protection  Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature,
IP Rate IP65
Mounting method Wall mount
Size 155X125X38mm
Weight 460g
Operation Temperature -25~50℃/-13~122℉

Storage Temperature -40~85℃/-40~185℉

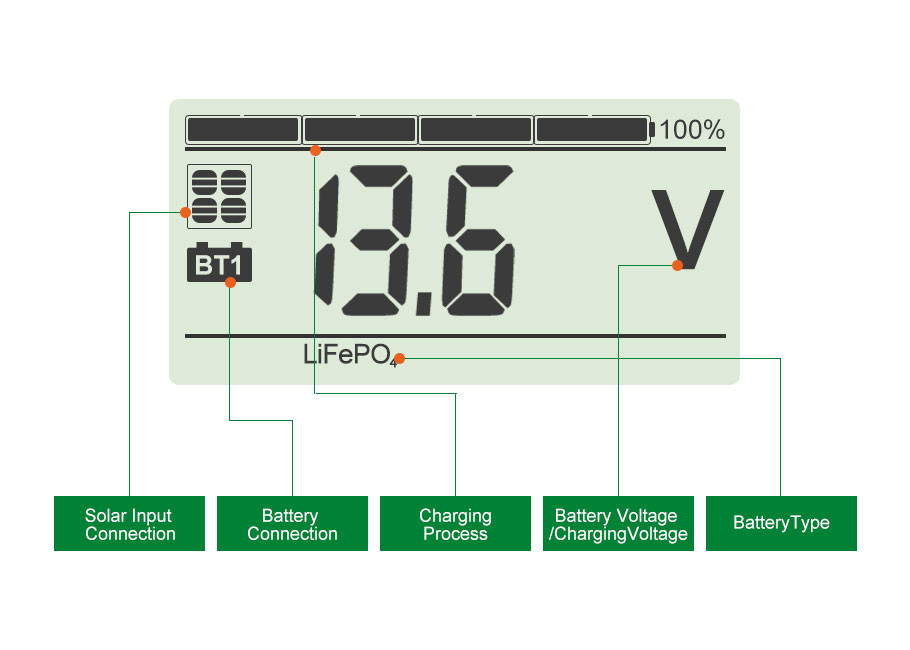

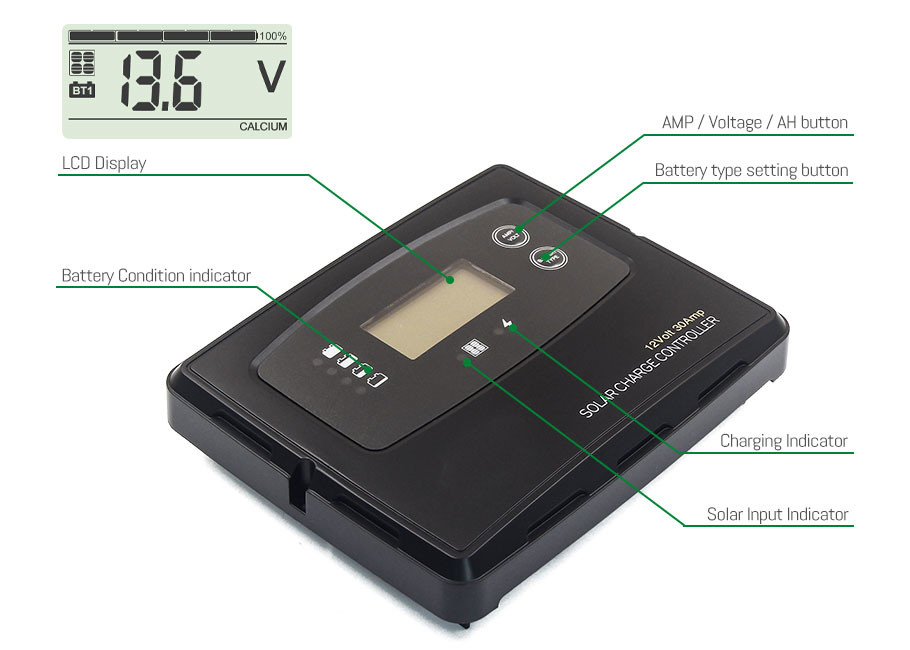

【LCD + LED Display 】

12V 40 Amp PWM Smart Digital Solar Charge Controller For Lead Acid And Lithium Battery

12V 40 Amp PWM Smart Digital Solar Charge Controller For Lead Acid And Lithium Battery
